500m masofa 1550nm infraqizil Laser moduli

Model

Sg -IR1550-5M

Samarali masofa

≥500m

Rejimi

Falsel

To'lqin uzunligi

1550nm ± 15nm

Kirish quvvat

≤21w

Lazerli chip kuchi

2.2w ± 0.2w

Chiqish engil quvvat

2.0w ± 0.2w

Yoritish burchagi

1 ° ~ 30 ° (uzluksiz kattalashtirish)

Spote diametri

Uzunlik 1,0 °, samarali masofa> 500m, nur spametri

30 ° burchakli, samarali masofa> 80m

ZOOM Vaqt

≤4s (eng yaqin)

Lazer xavfsizligi darajasi

1-sinf

Aloqa interfeysi

Rs - 485, ttl232, qo'lda boshqarish

Aloqa protokoli

PELCO - D, 9600b / sentyabr oyi (4800b / s)

Ish rejimi

Davom ettirmoqda

Xizmat hayoti

> 30000H

Kirish quvvat

DC12V ± 10%, 1,5 ± 0.2a

Operatsion harorat

- 20 ° C ~ + 55 ° C

Saqlash harorati

- 20 ° C ~ + 70 ° C

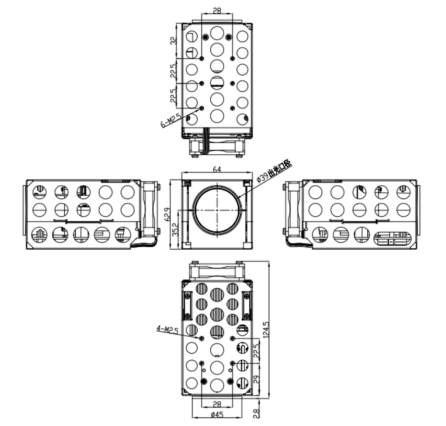

O'lchov

124.5mm * 64mm * 63mm

Vazn

400 g
