2mp 20x Zoom HDTVI, HDCVI, AHD, CVBS 4 1 chiqishi moduli

Model

Sg - Zcm2020a

Sensor

Rasm sensori

1/28 "Sony IMX307 CMOS

Samarali piksel

Taxminan. 2.13 megapiksel

Linza

Fokal uzunligi

4.8 mm ~ 96mm, 20x optik kattalashtirish

Teshik

F1.6 ~ F3.5

Ko'rish maydoni

H: 61.8 ° ~ 3.6 °

Joylashtirish masofasini yaqin masofa

100 ~ 1500mm (keng ~ tele)

Kattalashtirish tezligi

Taxminan. 3s (optik keng ~ tele)

Video

Format

Hd - Tvi, HDCVI, AHD, CVBS 4 (OSD menyusi tugmasi)

Chiqindi

IVP - P Compit Chiqish

Hal qilish

TVI / CVI / Ahd: 25 / 30fs @ 2mp (1920 × 1080)

CBVS: 700TVL

OSD menyusi

On / OFF (11 * 20 belgi)

Minimal yoritish

Rang: 0.01lux / F1.6; B / w: 0.001lux / F1.6

Kun / tun

ICR (avtoulov, qora, tashqi)

S / N nisbati

≥44db

2D shovqinni kamaytirish

Qo'llab-quvvatlash

3D shovqinni kamaytirish

Qo'llab-quvvatlash (yuqori / o'rta / past)

Face Mode

Avtomatik, qo'llanma, yarim avtoulov,

Ta'sir qilish rejimi

Avtomatik, qo'llanma

Shutter tezligi

Auto, 1/50 (1/60) ~ 1 / 100,000

Sekin tortishuv

X2

Oq balans

Auto, yopiq, tashqi, avtomatik trek, bitta it

Klol

On / o'chirish

Avtomatik daromad nazorati

Avtomatik, qo'llanma

Maxfiylik niqobi

On / o'chirish, maksimal. 8 soha

Ta'rif

Sozlanadigan

Qarama-qarshilik

Sozlanadigan

Devog

Qo'llab-quvvatlash

Oyna

On / Off, aylantirish, aylantiring

Rasm muzlash

On / o'chirish

Interfeys

6PIN, 2PIN 1.25mm terminallar bazasi, quyruq paneli

Aloqa protokoli

Sonyning viskozasi, pelco d, utc (9,6 kbit / 10bit)

Ishlash sharoitlari

- 30 ° C ~ + 60 ° C / 20% gacha 80% RH

Saqlash shartlari

- 40 ° C ~ + 70 ° C / 20% dan 95% RH

Quvvatlantirish manbai

DC 12v / 90ma ± 6MA (DC diapazonlari: 9 ~ 16V)

Quvvat iste'moli

Maks. 4w

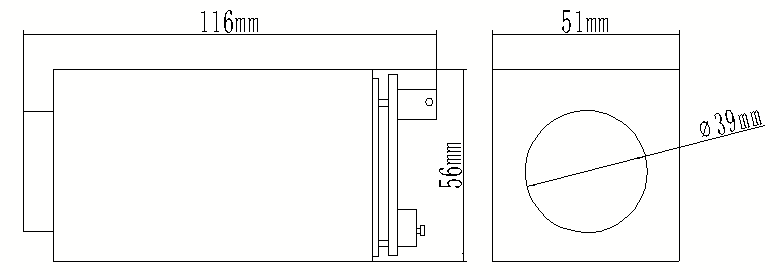

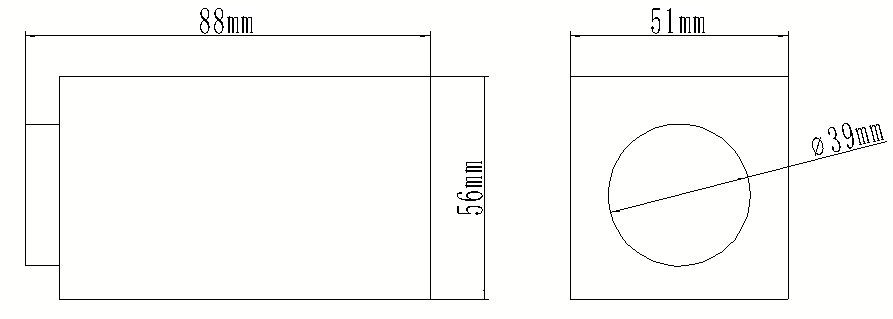

O'lchamlari (l * w * h)

88mm * 51 mm * 56mm (116mm * 51 mm * 56 mm)

Vazn

213G (dumli taxta bilan 231g)
