Spetsifikatsiya
| Model | SG-SWZ12ND2-17510 | SG-SWZ06ND2-17510 | |
| Sensor | Tasvir sensori | 1/2 ″ SONY InGaAs global tortishish SWIR sensori IMX990 | 1/4 ″ SONY InGaAs global tortishish SWIR sensori IMX991 |
| Samarali piksellar | Taxminan1,34 MP | Taxminan0,34 MP | |
| Piksel hajmi | 5 mkm | ||
| Ob'ektiv | Javob to'lqin uzunligi | 1000 ~ 1700 nm | |
| ICR | 2 rejimni qo'llab-quvvatlash: Keng tarmoqli: 1000 ~ 1700nmTor tarmoqli: 1450 ~ 1700nm | ||
| Fokus uzunligi | 17mm~510mm, 30x optik kattalashtirish | ||
| Diafragma | F2.8~F5.5 | ||
| Ko'rish maydoni | H: 21,3°~0,71°, V: 17,1°~0,57°, D: 27,1°~0,92° | H: 11,6°~0,37°, V: 9,3°~0,3°, D: 14,8°~0,47° | |
| Fokus masofasini yoping | 1m~10m (keng~Tele) | ||
| Kattalashtirish tezligi | Taxminan7s (Optik keng ~ Tele) | ||
| Video | Siqish | H.265/H.264/H.264H/MJPEG | |
| Rezolyutsiya | 25/30/50/60 kadrlar @ 1280×1024 | 25/30/50/60 kadr/s@640×512 | |
| Video bit tezligi | 32kbps ~ 16Mbps | ||
| Audio | AAC / MP2L2 | ||
| LVDS video | 25/30/50/60 kadr/s@2MP (1920×1080) | ||
| Tarmoq | Saqlash | TF karta (256 GB), FTP, NAS | |
| Tarmoq protokoli | Onvif, HTTP, HTTPS, IPv4, IPv6, RTSP, DDNS, RTP, TCP, UDP | ||
| Multicast | Qo'llab-quvvatlash | ||
| Mikrodasturni yangilash (LVDS) | Mikrodasturni faqat tarmoq porti orqali yangilash mumkin | ||
| Umumiy tadbirlar | Harakat, o'zgartirish, SD karta, tarmoq | ||
| IVS | Tripwire, oʻzaro toʻsiqni aniqlash, bostirib kirish, tashlab ketilgan obyekt, tez harakatlanuvchi, toʻxtab turish joyini aniqlash, olomonni yigʻishni baholash, etishmayotgan obʼyekt, bedavolikni aniqlash. | ||
| Shovqinni kamaytirish | 2D/3D | ||
| Ekspozitsiya rejimi | Qo'lda, Avtomatik, Diafragma ustuvorligi, tortishish ustuvorligi | ||
| EHM kompensatsiyasi | Qo'llab-quvvatlash | ||
| O'chirish tezligi | 1/1~1/30000s | ||
| Fokus rejimi | Avtomatik/qo'lda/yarim avtomatik | ||
| Elektron tozalash | Qo'llab-quvvatlash | ||
| Issiqlik tumanlarini kamaytirish | Qo'llab-quvvatlash | ||
| Flip | Qo'llab-quvvatlash | ||
| EIS | Qo'llab-quvvatlash | ||
| Raqamli kattalashtirish | 16x | ||
| Tashqi nazorat | TTL | ||
| Interfeys | 4 pinli Ethernet porti, 6 pinli seriyali va quvvat porti, 5 pinli audio port. 30 pinli LVDS | ||
| Aloqa protokoli | SONY VISCA, Pleco D/P | ||
| Ishlash shartlari | -30~+60°C/20%~80% RH | ||
| Saqlash shartlari | -40~+70°C/20%~95% RH | ||
| Quvvatlantirish manbai | DC 12V | ||
| Quvvat iste'moli (TBD) | Oʻrtacha: 6W;Maksimal quvvat: 11 Vt | ||

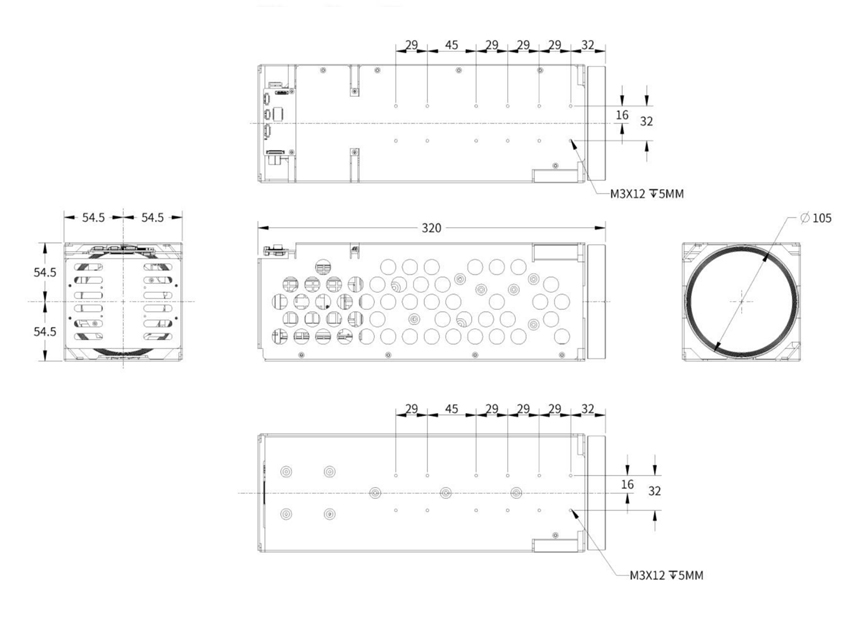

| Olchamlari (L*W*H) | Taxminan320mm * 109mm * 109mm | ||
| Og'irligi | 3,1 kg | ||
Tarmoq interfeysi
| Turi | PIN raqami | PIN nomi | Tavsif |
| J2_4pin Ethernet interfeysi | 1 | ETHRX- | Adaptiv Ethernet porti, Internet RX- |
| 2 | ETHRX+ | Adaptiv Ethernet porti, Internet RX+ | |
| 3 | ETHTX- | Adaptiv Ethernet porti, Internet TX- | |
| 4 | ETHTX+ | Adaptiv Ethernet porti, Internet TX+ | |
| J3_6pin quvvat va UART interfeysi | 1 | DC_IN | DC12V |
| 2 | GND | GND | |
| 3 | RXD1 | TTL darajasi 3.3V, Pelco protokoli | |
| 4 | TXD1 | TTL darajasi 3.3V, Pelco protokoli | |
| 5 | RXD0 | TTL darajasi 3.3V, Visca protokoli | |
| 6 | TXD0 | TTL darajasi 3.3V, Visca protokoli | |
| J1_5pin audio interfeysi | 1 | AUDIO_OUT | Ovoz chiqishi (chiqish) |
| 2 | GND | GND | |
| 3 | AUDIO_IN | Audio Kirish (Line In) | |
| 4 | GND | GND | |
| 5 | NC | NC |
LVDS interfeysi
| Port | Raqam | PIN nomi | Tavsif |
| J4_30pin LVDS interfeysi (SONY 30pin raqamli interfeysiga o'xshash) | 1 | NC | NC |
| 2 | NC | ||
| 3 | NC | ||
| 4 | NC | ||
| 5 | NC | ||
| 6 | NC | ||
| 7 | NC | ||
| 8 | NC | ||
| 9 | GND | GND | |
| 10 | GND | ||
| 11 | GND | ||
| 12 | GND | ||
| 13 | DC | DC chiqishi (DC+7V~+12V) | |
| 14 | DC | ||
| 15 | DC | ||
| 16 | DC | ||
| 17 | DC | ||
| 18 | UART1_TX | TTL darajasi 3.3V, VISCA protokoli, J3_6pin portidagi TXD0 bilan bir xil.Lekin bir vaqtning o'zida ulana olmaydi. | |
| 19 | UART1_RX | TTL darajasi 3.3V, VISCA protokoli, J3_6pin portidagi RXD0 bilan bir xil.Lekin bir vaqtning o'zida ulana olmaydi. | |
| 20 | GND | GND | |
| 21 | TXOUT0- | ||
| 22 | TXOUT0+ | ||
| 23 | TXOUT1- | ||
| 24 | TXOUT1+ | ||
| 25 | TXOUT2- | ||
| 26 | TXOUT2+ | ||
| 27 | TXOUTCLK- | ||
| 28 | TXOUTCLK+ | ||
| 29 | TXOUT3- | ||
| 30 | TXOUT3+ |
